// Orion

Orion is an industry-leading Stretch Wrapping & Pallet Unitizing Machinery manufacturer of automatic and semi-automatic stretch wrapping equipment, including rotary turntables, rotary towers, and horizontal wrapping systems.

Semi-Automatic Stretch Wrappers (Sentry & Flex)

Specialty Stretch Wrapping Systems

Fully Automatic Stretch Wrappers

Advanced Technologies & Accessories

Semi-Automatic Stretch Wrappers

Reach Out Today For a Quote!

semi 1

Semi-Automatic Stretch Wrappers

Orion's comprehensive line of semi-automatic stretch wrappers can deliver added efficiencies to your wrapping and load containment. With standard lead times of three weeks or less, you can quickly drive your costs down and your profitability up. The semi-automatic stretch wrappers from Orion are categorized as a semi-automatic turntable and semi-automatic rotary tower.

Stretch wrappers from Orion include:

High Profile Sentry HP
Flex Rotary Tower Deluxe
Flex High Profile Deluxe
Flex Low Profile Deluxe
Sentry Low Profile
Flex Rotary Tower Automatic
Portable Flex High Profile Automatic
Portable Flex Low Profile Automatic

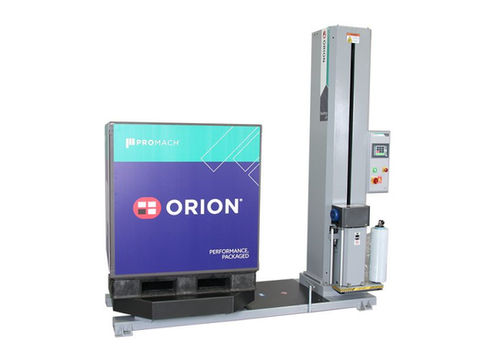

High Profile Semi-Automatic Stretch Wrapping System - Sentry HP

Wrap up your deal on the semi-automatic stretch wrapper that takes entry level to the next level.

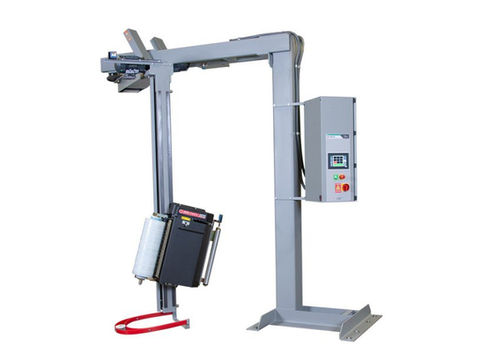

Rotary Tower Semi-Automatic Pallet Wrapper Flex RTD Rotary Tower Deluxe

The RTD semi-automatic stretch wrapper models represent the latest in rotary tower stretch packaging technology. These stretch wrapper systems can be loaded by pallet jack or lift truck, no ramps required. Because the RT model stretch wrappers rotate the film carriage around a stationary load, they are ideal for unitizing even the most difficult loads, including those that are extremely heavy, light, fragile or unstable.

This Flex RTD Series has no maximum load weight capacity. For ease of motion, this pallet wrapper has a precision ring bearing drive system and a tower mounted obstacle sensing system. As Orion keeps safety as a requirement, the RTD Series has a structural steel construction for durability and security.

The RTD Series ensures high performance with a film delivery carriage, as well as the AC/VFD motors, which reduce maintenance. Receive innovative equipment built for safety, dependability, and quality use.

Turntable Pallet Wrapper Flex HPD High Profile Deluxe

Cost Effective, Rugged and Reliable.

The Flex High Profile Deluxe pallet wrapper models have been designed and built with economy, efficiency and safe operation in mind. These stretch wrapping machines will give you all of the features you need to wrap pallet loads quickly and efficiently, using the least amount of stretch film. With several available options like extended base or mast, or 30” film carriage, you can be have your Flex machine built to do exactly what you need it to do.

The Flex Series high profile deluxe is easy to install with a new dual turntable option for an existing machine. Other advantages of the Flex Series high profile deluxe include its low cost alternative to purchasing a second machine, its separate turntable base design with a plug-in for a second turntable, making moving the machine from location to location very fast and easy, and its identical turntable chassis to original stretch wrapper, which enables seamless integration.

Turntable Pallet Wrapper Flex LPD Low Profile Deluxe

Cost Effective, Rugged and Reliable.

The Low Profile Deluxe Flex Series (Flex LPD) pallet wrapper was designed and built with economy, efficiency and safe operation in mind. These stretch wrapping machines give you all of the features you need to wrap pallet loads quickly and efficiently, using the least amount of stretch film.

The Low Profile Deluxe ensures quality product handling. With a full surround deck to protect the turntable, products are kept safe and secure. And for safety in equipment, the Flex LPD is built with a structural steel frame for durability.

This pallet wrapper has a 5,000 pound maximum load weight capacity and a high efficiency of 260% powered film pre-stretch. With available options like dual turntables, extended base or mast, or 30” film carriage, your Flex Low Profile Deluxe machine can be built to do exactly what you need it to do.

With product quality in mind, Orion makes sure that its equipment is safe, secure, and dependable.

Low Profile Semi-Automatic Stretch Wrapping System Sentry LP

The feature-rich Sentry LP or its high profile sibling the Sentry HP are on a level of their own when it comes to entry-level semi-automatic wrappers. Both the Sentry LP & HP utilize Orion's signature rugged steel construction and durable AC motors, and integrate standard features like a load stabilizing 200% powered pre-stretch, which reduces film consumption to about half of manually wrapped loads, while increasing stability.

Plus, Sentry wrappers are equipped with user-friendly features like the IntelleVue touchscreen display that allows operators to access and quickly change wrap counts, adjust turntable speed, carriage speed, film tension, and access stored recipes, user-manuals and more. Also, standard on the Sentry machines are the load height sensing photo eye and Orion's unique RevoLogic™ technology, which delivers a precise count of each revolution of the turntable, and stops the turntable in the same position after each cycle.

Options that elevate the Sentry LP even further:

Easy-to-use integrated scale package with quick connect and battery backup
Increase speed and performance with Orion's Insta-Thread Carriage with 260% pre-stretch and the insta-cut option
Multiple ramp options, including pallet jack, walkie with contour, and extension
Extended mast up to 110"

Rotary Tower Automatic Pallet Wrapper Flex RTA

The RTA automatic stretch wrapping system is the fastest way to boost your end-of-line packaging efficiency by eliminating the need for operators to manually attach the film tail to the load, then cut and secure the film tail at the end of the cycle. The RTA stretch wrapper automatically performs these functions so your operators simply place the load, pull a handing lanyard to start the cycle, and attend to other duties. When they return the load is securely wrapped and ready to be removed.

With no maximum load weight capacity, your product needs are easily met. there is a floor mounted control panel for flexibility along with the structural steel construction for durability.

A start cycle with hanging lanyard comes standard on the Flex RTA Series. A tower mounted obstacle sensing system is available for a more controlled, safe environment. And for precision, there is a precision ring bearing drive system available.

Portable Automatic Stretch Wrapping System Flex HPA High Profile Automatic

Flex A models eliminate the need for operators to attach and cut the stretch film. Simply place the pallet load on the machine, and pull a lanyard switch while backing away. The machine will perform the entire wrap cycle automatically without the need for an operator to tie the film tail to the load at the beginning of the cycle, and detach it at the end. This will greatly impact the efficiency of your stretch packaging operation by keeping your operators busy with other tasks while the machine is wrapping.

The Flex Series HPA reduces labor with its automatic cycle. With forklift portable from front or rear, this system is designed for full function with no operator necessary. The maximum load weight capacity for the Flex HPA Series is 5,000 pounds. With the 48-inch by 48-inch turntable for load up to 50-inch by 50-inch, this HPA differs from the available LPA Series. With an octagonal turntable for easy forklift loading, the HPA Flex Series ensure product safety and security.

Portable Automatic Stretch Wrapping System Flex LPA Low Profile Automatic

Flex A models eliminate the need for operators to attach and cut the stretch film. Simply place the pallet load on the machine, and pull a lanyard switch while backing away. The machine will perform the entire wrap cycle automatically without the need for an operator to tie the film tail to the load at the beginning of the cycle, and detach it at the end. This will greatly impact the efficiency of your stretch packaging operation by keeping your operators busy with other tasks while the machine is wrapping.

The Flex LPA Low Profile Automatic system has a 5,000 pound maximum load weight capacity. With an automatic wrap cycle for operator efficiency and a full surround deck to protect the turntable, this wrapping system is meant for the perfect blend of dependability and flexibility.

Specialty Stretch Wrapping Systems

Orion is known in the industry for our willingness and ability to develop custom stretch wrapping machines for specialty applications. We work with customers to apply our state-of-the-art stretch packaging technology to their unique (custom) application. As a result, some of these custom stretch wrapper systems have, in turn, become standard specialty models.

Thus, making custom stretch wrap packaging available to industries that, otherwise, would have continued to rely on other unitizing means such as:

Strapping
Corrugated
Shrink Bundling

specialty

Orion-Lo-Pro-Chain-Conveyor-MA-ST-Stretch-Wrapper-2_2020-08-26-113830.jfif

Lo-Pro Drag Chain Conveyor

The low profile, heavy-duty, three-strand chain conveyor with a pass height of only four inches, allowing for convenient loading of multiple loads by either hand-powered pallet jacks electric “walkies”, or forklift.

The new Lo-Pro Drag Chain conveyor is ideal for beverage distribution and other facilities where multiple pallet loads are carried by one vehicle, increasing efficiency and productivity. The operator simply brings the load to the infeed zone of the conveyor then lowers it onto the chain drive. The machine’s logic control then takes over staging the loads and conveying them one at a time into the wrapping zone of the stretch wrapper.

The Lo-Pro Drag Chain is the ideal companion for the MA-DX Rotary Tower Automatic Stretch Wrapper. The two work together as the ultimate pallet wrapping system for high volume applications. The 60 feet-per-minute Lo-Pro conveyor keeps pace with the MA-DX’s 28 RPM counter-balanced rotary arm wrapper.

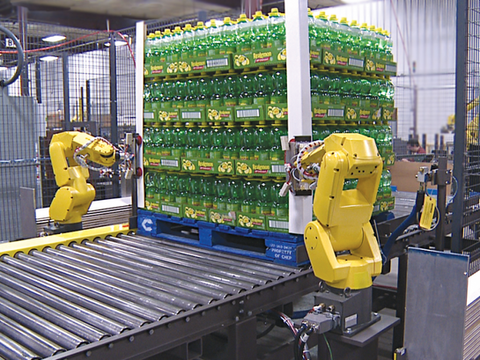

Cornerboard Applicator RCBA Robotic Corner Board Applicator

The new Orion Robotic Corner Board Applicator, or RCBA, is the fastest and most efficient way to apply corner boards to pallet loads. Using robotics to pick and place the boards vastly increases the precision and simplicity of the process as compared to systems that place boards by mechanical means. Corner boards are attached to loads on the infeed section while transporting in to the wrapping area. Attachment methods can be tailored to customer specifications. Current methods include hot melt glue or nitrogen charged adhesive to produce a foam type adhesive for protecting the corrugate from damage when the boards are removed.

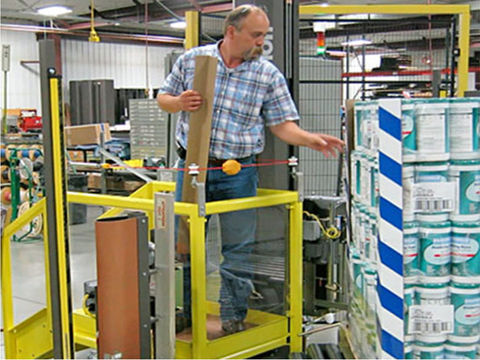

Manual Corner Board Applicator MCBA

This option is available on the Orion FA turntable automatic system and is designed for customers who require operators to apply cornerboards to pallet loads in a safe and efficient manner.

The manual corner board applicator is designed to ensure precision and efficiency in the packaging process. This system allows for operators to manually apply cornerboards to pallet loads in a safe and effective manner. Benefits of using this machine include added safety in the production room, a slow mode for operator safety, and more.

When pallets are placed onto a turntable, the operator stands in the operator booth. Slowly, the pallet load will begin to spin so that each cornerboard can be manually placed. Once this is complete, the turntable stretch wrapper speeds up. When complete, the pallet is sent forward on the conveyor.

Rotary Tower with 3-Station Stand RT 3 Station

Orion's RT semi-automatic rotary tower wrapper, can be mounted to an optional 2-way or 3-way stand to give customers one extra or two extra wrapping areas. The option is available in both manual and motorized version.

This machine is designed to allow industries to maximize their time. By adding up to a 3-way stand, efficiency is achieved. The RT 3 Station is ideal for spaces with medium to high volume. Features on this system include high speeds, versatility, added options to maximize use, and more.

Six Sided Stretch Wrapping Machine AXIS

In certain industries, especially printing, total six-sided protection of pallet loads is desired for total product protection and to "lock" the load effectively to the pallet. Steel or poly strapping is commonly used, however many customers would like to eliminate the high cost, high maintenance and recycling issues of strapping.

That's why Orion has developed a system based on a large ring Constellation orbital wrapper combined with an FA (or MA) automatic stretch wrapping system. Customers have realized greatly increased up time while dramatically lowering total pallet packaging costs with this system.

Custom Window & Door Stretch Wrapping System

Orion door and window stretch wrapping equipment helps your products arrive to market in pristine condition. Depending on your specific size/weight/throughput requirements, Orion can customize a wrapping system to meet your goals, reduce your packaging costs, and assure that your customers receive your products in the same condition that they shipped.

Orion door and window wrapping systems have a wide variety of configurations including turntable models, conveyorized models and Orbital (horizontal) models.

Roll Wrapper RW-44

Orion's RW-44 is a heavy-duty semi-automatic wrapping system designed to stretch wrap roll product by turning the roll on steel blocking rollers while spinning the product on a 14 RPM turntable. This creates a "cocoon" wrap pattern and provides complete protection and unitization of the roll. Maximum load size is 60" Diameter x 65" Length. Maximum load weight is 6,000 pounds.

To ensure that all product sizes and shapes are accommodated in the packaging process, Orion offers the RW-44 in its stretch wrapper product line. This machine is specifically designed for product that needs to be roll wrapped.

In addition to the many features on the RW-44, Orion has created this machine to ensure safety during the packaging process. Safety features include a pneumatically operated shaft to keep the turntable in place, turntable support, structural steel framing, and more.

Stretch Wrapping Mini-System Orion & Brenton Mini-System

Orion Packaging and Brenton Engineering, two of today's leading packaging equipment manufacturers, present the Mini-System, an "all-in-one" robotic palletizer / automatic stretch wrapping machine designed to increase productivity by integrating separate material handling and pallet packaging operations into one fully integrated stretch wrapping system.

The Mini-System is a complete end-of-line packaging solution which can handle a wide variety of product types, sizes and weights and can easily be programmed to handle a variety of stacking patterns. The use of tried and true proven technology means you can depend on the stretch wrapping Mini-System for long term reliability.

Fully Automatic Stretch Wrappers

Orion's automatics systems come standard with industry leading CAT-3 electrical and multi-zone safety features that help improve operator safety and performance. Separate CSA approved, UL listed and NEMA 12 rated high and low voltage panels prevent unnecessary exposure to high voltage components. The multi-zone access feature stops only the process zone, so the operator can switch out film while the product stages on the infeed or continues on the exit conveyors. A main emergency E-stop feature is incorporated and will completely shut down the system, in addition the optional E-stops can be added throughout the line.

Orion offers a variety of flexible stretch wrapping solutions, including:

Turntable
Rotary Tower
Orbital

automatic

Rotary Tower Automatic Stretch Wrapping System MA-DX & MA-DX2

Our top selling MA-DX stretch wrapping system incorporates a super-stable 4-leg design that can be found in some of America's top Fortune 500 manufacturing and distribution plants, and for good reason. A long list of desirable features make the MA-DX the go-to system for high-performance applications. And, now our MA-DX2 takes the high -speed performance of the MA-DX up another notch. Using dual 30” Insta-Thread™ film carriages and 28RPM counter-balanced rotary arms the MA-DX2 pushes load throughput up to 100 pallets an hour.

Rotary Tower Automatic Stretch Wrapping System MA-X

Orion's MA-X stretch wrapping machine and rotary stretch wrapper is our top of the line rotary tower in terms of speed, weight capacity and features. The MA-X stretch wrapper handles loads weighing up to 6,000 pounds and features a 0-30 RPM rotating arm for throughput of up to 120 loads per hour. This automatic rotary stretch wrapping machine is an excellent choice for high production level applications which demand maximum speed, efficiency and long term durability.

Turntable Automatic Stretch Wrapping System FA

The Orion FA is unique in the marketplace as it offers Category 3 Safety Rating as standard equipment, not an option. As part of Cat 3 Safety Rating the FA uses separate high and low side electrical cabinets (NEMA-12 and UL rated) that not only reduce noise, but allow service techs to access that work space more safely. Plus, you'll find full surround 8 foot high steel mesh fencing with interlocked access points as well as infeed and exit light curtains with electronic muting.

Rotary Tower Automatic Stretch Wrapper with Conveyance - RTC

Featuring a standard 18" pass height, the RTC is a rotary tower automatic wrapper that integrates with new or existing conveyance. It's a cost-effective option to quickly upgrade an existing line to automatic performance.

The RTC is fully automatic, and attaches the stretch film at the cycle start, and cuts it at the end. The forklift operator simply places the pallet-load on the infeed conveyor and pulls a lanyard switch while moving away to collect the next load.

Advanced Technologies & Accessories

Standard features like Orion's RevoLogic technology that ensures precise top and bottom wrap count, our film saving InstaThread film carriages, and our IntelleVue touchscreen display with pre-programmed recipes and remote monitoring capability are just a few of the reasons that Orion wrappers are setting the standard for innovation in stretch wrapping.

Orion systems are ideal for any application, with custom components and the flexibility to upgrade your system with options like our:

Fast, smooth LoPro Drag Chain Conveyor
Integrated scales
Top sheet applicators

advnced

High-Pro Chain Conveyor

Heavy-duty high profile conveyor with smooth roller-free conveyance. Triple strand drag chain eliminates the vibration typical with roller conveyance, so fragile or unstable loads can be moved safely at a typical rate of 40 feet per minute.

Tread plate decking helps keep debris from falling below the conveyor. Available options for use with the High-Pro include Lifeline Cable E-stops, motor guards and integrated scales.

S-Carriage InstaThread Prestretch Film Carriage

The S-Carriage InstaThread Pre-Stretch Film Carriage is engineered with features that reduce material costs, save time, and minimize the potential for accidents.

The standard 260% material saving pre-stretch, not only significantly reduces film costs it’s also an important feature from a sustainability standpoint, as more and more companies look for ways to reduce their environmental impact.

The "drop in" Insta-thread film change makes changeover quicker and safer. Simply grab the film, pull it through, and close the door. Weaving the film between the rollers is not required, so hands remain clear of the internal components.

IntelleVue HMI

With the introduction of the IntelleVue HMI, Orion completely rewrote the user control interface to be completely menu driven - operating more like a smart phone than a stretch wrapping machine.

Pre-programmed menus, and three levels of security access ensure consistent peformance. And the look and structure of the IntelleVue's intuitive interface is consistent across the entire Orion product line - for operator familiarity across platforms.

Built in network capability it’s possible to monitor machine performance and troubleshooting over a network. A USB port allows for fast and easy software updating.

Orion RevoLogic™ Technology

Unlike competitive equipment, Orion’s RevoLogic uses exact tooth-counting technology and load-height sensing photo-eyes to create a unique system that precisely applies the exact number of top and bottom film wraps.

When the photo eye detects the top of the load, the microprocessor begins counting teeth so that regardless of where the turntable is, you’ll get the exact top and bottom wrap counts and ensures home position alignment - stopping the turntable in same position after each cycle. This saves time and film and maximizes load containment.

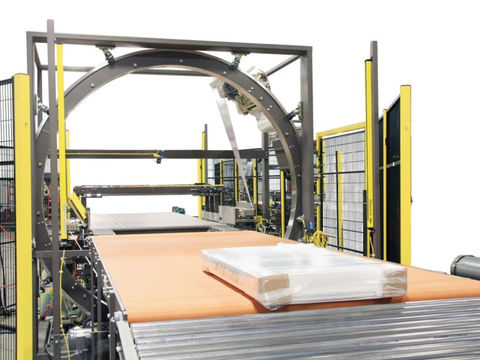

Orbital Stretch Wrapping Systems

Orion engineers its orbital stretch wrapping systems with high-quality components, state-of-the-art electronics, and plenty of heavy gauge structural steel for machines that operate at maximum efficiency year in and year out. The Constellation orbital stretch wrapper is available in a wide variety of configurations including ring sizes from 15" to 90" inches to accommodate a variety of load sizes.

Examples of products that are well suited for orbital wrapping include:

Pipe
Plastic extrusions
Carpet rolls
Lumber
Aluminum siding

orb

Agricultural Produce

Pallet loads of agricultural products often contain ventilated cases to allow the fresh fruit and vegetable products to breathe and thus prevent spoilage. Transportation of produce loads, and other load types that require ventilated cases, demands specialized stretch wrapping equipment to prevent ventilation holes from being covered up by a full web of stretch film. Orion Packaging has developed two unique technologies, Automatic Dual Roping System & Split and Rope Semi Automatic, to allow shippers of ventilated product to effectively and economically unitize pallet loads and get them to market in pristine condition.

Pharmaceutical

Orion, as part of the ProMach End of Line Group, can provide customers in the pharmaceutical industry with a wide range of unique, customized solutions. Whether a single stretch wrapping system or a complete EOL package, Orion and our associated ProMach divisions, have the experience and engineering prowess to provide the pharmaceutical and nutraceutical industries with a wide range of efficiency-boosting solutions.

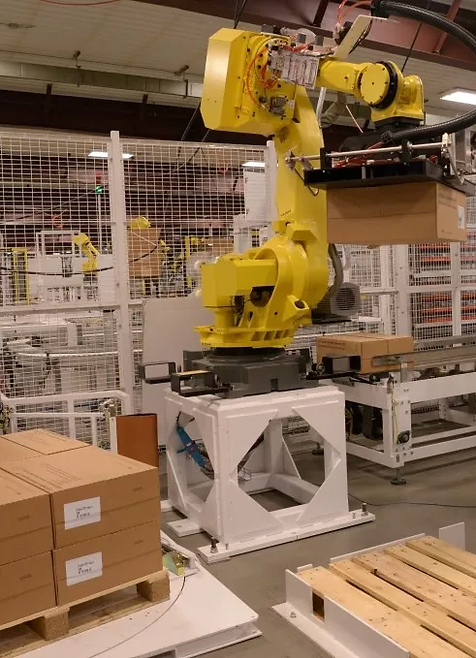

In the example pictured, the system contained a pallet feeder and placer, a custom-engineered end-of-tool fixture for precise palletizing of cases, a single-arm robotic corner board applicator, and a plastic top sheet applicator and a stretch wrapper.
